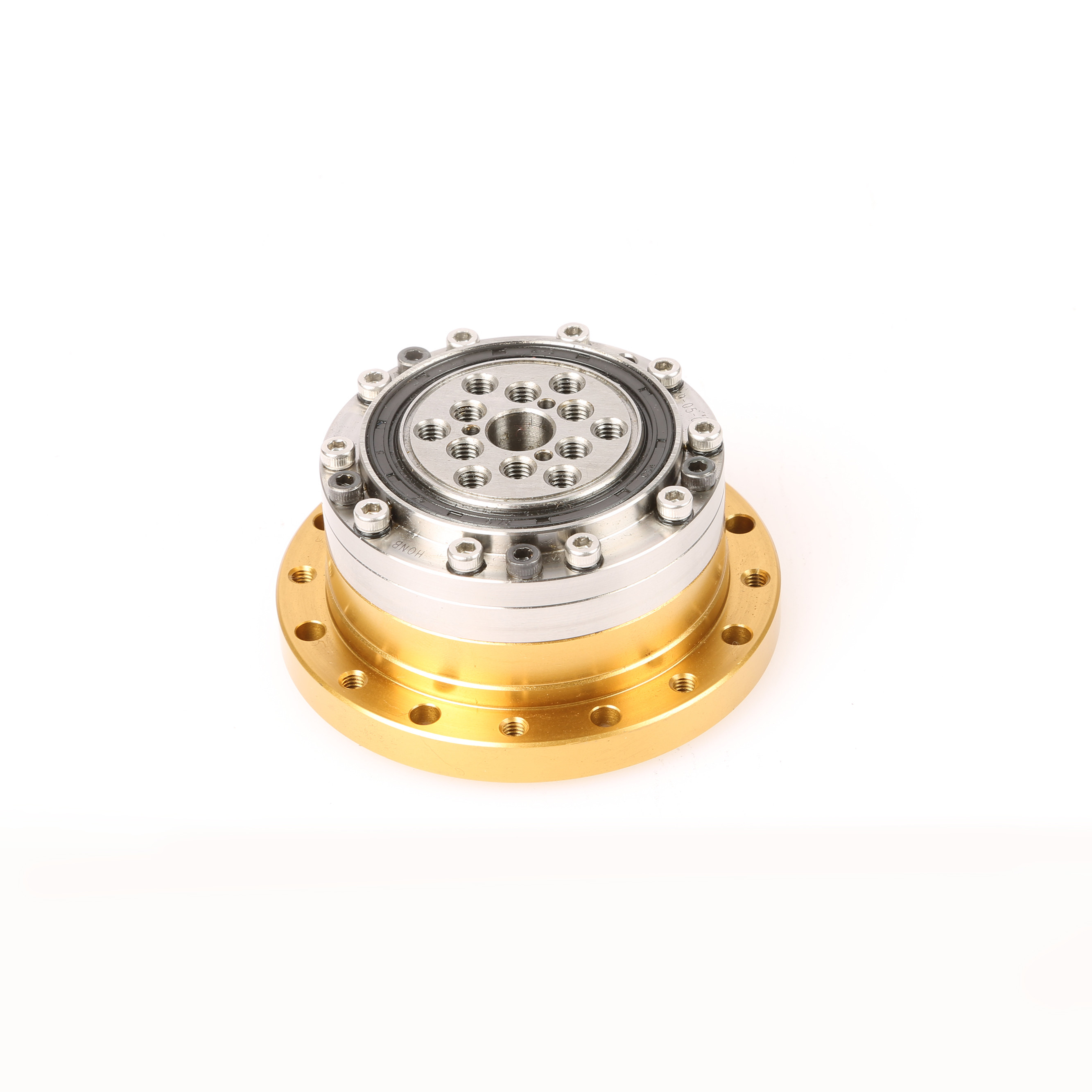

Size 14 Ratio 1:50 Harmonic Drive Gear Reducer High Movement Accuracy

    Buy cheap Size 14 Ratio 1:50 Harmonic Drive Gear Reducer High Movement Accuracy from wholesalers

    Buy cheap Size 14 Ratio 1:50 Harmonic Drive Gear Reducer High Movement Accuracy from wholesalers
    • Buy cheap Size 14 Ratio 1:50 Harmonic Drive Gear Reducer High Movement Accuracy from wholesalers

    Size 14 Ratio 1:50 Harmonic Drive Gear Reducer High Movement Accuracy

    Ask Lasest Price
    Brand Name : Wanshsin
    Model Number : WSHG-25-100
    Certification : ISO9001, CE, CCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10,000 Pieces per Month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Size 14 Ratio 1:50 Harmonic Drive Gear Reducer High Movement Accuracy

    Harmonic Reducer Reduction Ratio 1:50,80,100,120 Output Torque 3.5-160Nm for Printing Machine

    PRODUCT FEATURESS


    Wanshsin harmonic reducer has a wide transmission ratio range, a large number of meshing teeth, a large carrying capacity, high movement accuracy, smooth movement, small size, light weight, no impact, low noise, adjustable tooth side clearance, simple structure, and high transmission efficiency, good coaxiality, can achieve high-speed movement and other characteristics.


    Mainly used in all kinds of light industrial robots, robotic arms, printing, analysis, testing machines, large telescopes, precision packaging machinery, semiconductor manufacturing equipment, papermaking machinery, medical machinery, measurement, FPD manufacturing equipment, communication devices, aerospace machinery, CNC Precision transmission systems that require volume, such as machine tools, radars, and various satellite ground stations, etc.


    ModelRatioRated Torque When Input 2000r/minMaximum Allowed Torque for Starting and Stopping

    Maximum Allowed Average Load Torque

    Maximum Allowed Instantaneous TorqueMaximum Allowed Input SpeedArcsec

    Lifespan

    (hours)

    WCSF50-1205.4-13718-3536.9-21635-6864500-800010-2010000-15000
    WCSG50-1206.3-16021-4138-25342-8034500-800015-2010000-15000
    WSHG50-1206.3-16021-4138-25342-8034500-800015-2010000-15000
    WSHD50-1003.5-9111.4-2214.6-14323-3974500-800010-2010000-15000
    WCSD50-1003.5-9111.4-2214.6-14323-3974500-800010-2010000-15000

    Size 14 Ratio 1:50 Harmonic Drive Gear Reducer High Movement Accuracy


    FAQ


    Q: What should I provide when I choose gearbox/speed reducer?
    A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
    1) Type, model and torque.
    2) Ratio or output speed
    3) Working condition and connection method
    4) Quality and installed machine name
    5) Input mode and input speed
    6) Motor brand model or flange and motor shaft size


    Q: Are you a motor manufacturer?
    A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.


    Q: How long does it take to finish my order?
    A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.


    Q: Can I get a sample first?
    A: Sure, we are honored to offer you sample for test before placing a formal order.
