1 Small Volume
The total length of motor + reducer is 435mm, compared with common
industrial ceiling fans in the market the total length is 55mm
shorter, greatly reducing the installation space.
2 Light Weight
The total weight of motor + reducer is only 35KG,which is 10KG
lighter than the common industrial ceiling fan in the market.
3 High Transmission efficiency
Transmission efficiency≥97%, better performance compared with most
of the common industrial ceiling fan motors in the market.
4 Strong Loading Capacity
Strong bearing capacity: the output torque is up to 330Nm which is
more 20% higher than the common industrial ceiling fan in the
market and bring more air volume.
5 Good Sealing
Double oil seal is adopted, which is more reliable than the common
motors in the market with single oil seal.
Product Features

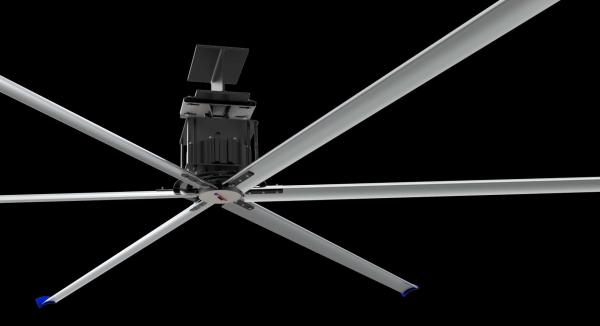

| Blade Diameter | 3.6 m | 7.3 m |
| Input Power | 0.55 kW | 1.5 kW |
| Full Load Air Volume | 9000 m3/min | 14500 m3/min |
| Speed Range | 10-90 rpm | 5-55 rpm |
| Weight | 48.8 Kg | 130 Kg |
| Noise | ≤39 dB | ≤39 dB |
| Isolating Grade | F | F |
| Protection Level | IP56 | IP56
|
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our
engineer will check and recommend the most suitable gearbox model
for your reference. Or you can also provide below specification as
well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the
motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot
sales products could be fast delivered in 1 week. It depends on the
quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing
a formal order.
