Multi Function 220V AC Motor Speed Controller With RST Reset Function

    Buy cheap Multi Function 220V AC Motor Speed Controller With RST Reset Function from wholesalers

    Buy cheap Multi Function 220V AC Motor Speed Controller With RST Reset Function from wholesalers
    • Buy cheap Multi Function 220V AC Motor Speed Controller With RST Reset Function from wholesalers

    Multi Function 220V AC Motor Speed Controller With RST Reset Function

    Ask Lasest Price
    Brand Name : Wanshsin
    Model Number : WX-K
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20,000 Pieces per Month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

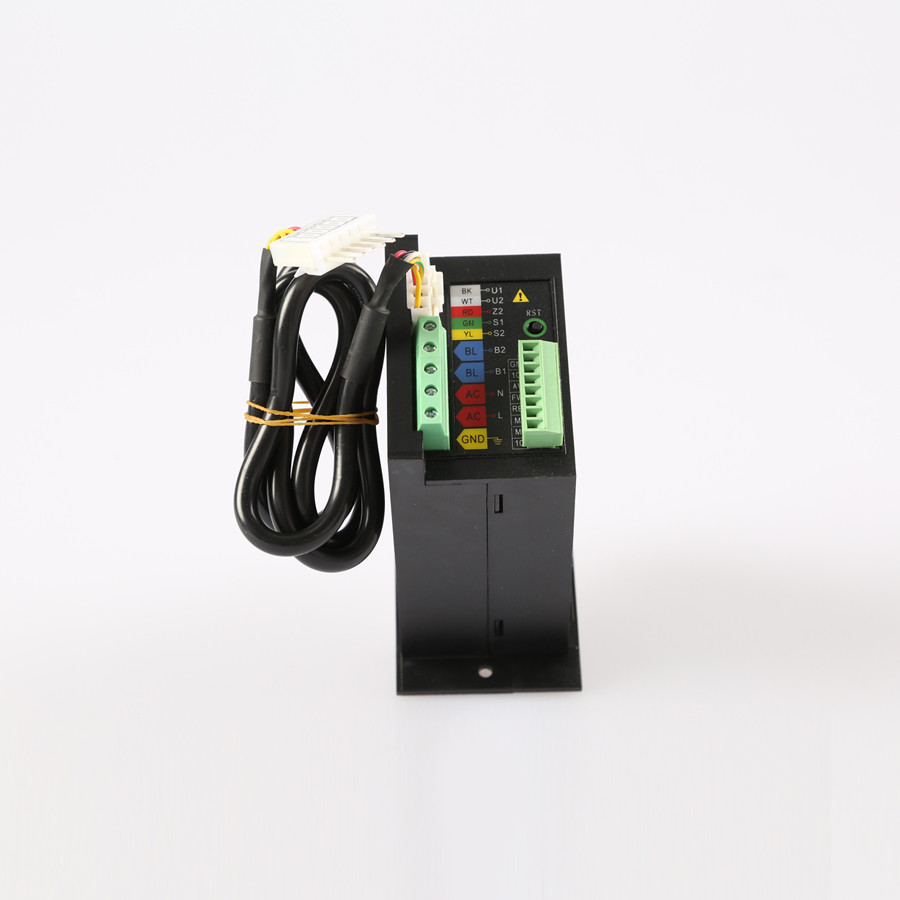

    Multi Function 220V AC Motor Speed Controller With RST Reset Function

    WX-K Multi-Function Gear Motor Speed Controller RST Reset Function 6W-200W


    Multi-Functions

    Speed control, slow acceleration, slow deceleration, locked-rotor protection, control forward and reverse rotation, speed display, panel button control with memory, magnification setting, 4 speeds, power failure electromagnetic brake stop, RST reset function, 0~10V simulation quantity control and external switches K1 and K2 can be directly connected to PLC control.


    Type parameter table


    TypeWS-PWS-LWX-K
    Installation methodPanel typeDigital display panel typeMulti-Function digital panel type
    Speed control methodPanel PotentiometerPanel Key/Panel PotentiometerPanel Key/Panel Potentiometer
    Power voltageSingle-phase 220V ACSingle-phase 220V ACSingle-phase 220V AC
    Functions

    Speed control,

    slow deceleration,

    slow acceleration,

    locked rotor protection

    Speed control, slow deceleration, slow acceleration, electromagnetic brake, locked rotor protection, panel control forward and reverse, speed display, panel buttons, control with memory, magnification setting and external switches K1 and K2 can be directly connected to PLC control.Speed control, slow acceleration, slow deceleration, locked-rotor protection, control forward and reverse rotation, speed display, panel button control with memory, magnification setting, 4 speeds, power failure electromagnetic brake stop, RST reset function, 0~10V simulation quantity control and external switches K1 and K2 can be directly connected to PLC control.

    Applicable motor power range

    6W~200W
    Running capacitorBuilt-in
    Power frequency50/60Hz
    Speed range50Hz:90~1300r/min 60Hz:90~1600r/min
    Speed variation rate5%
    Electromagnetic brake time0.4 seconds
    Applicableenvironment-10℃~+40℃ non-freeze;<85% non-condensation

    Multi Function 220V AC Motor Speed Controller With RST Reset Function

    FAQ


    Q: What should I provide when I choose gearbox/speed reducer?
    A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
    1) Type, model and torque.
    2) Ratio or output speed
    3) Working condition and connection method
    4) Quality and installed machine name
    5) Input mode and input speed
    6) Motor brand model or flange and motor shaft size


    Q: Are you a motor manufacturer?
    A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.


    Q: How long does it take to finish my order?
    A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.


    Q: Can I get a sample first?
    A: Sure, we are honored to offer you sample for test before placing a formal order.
