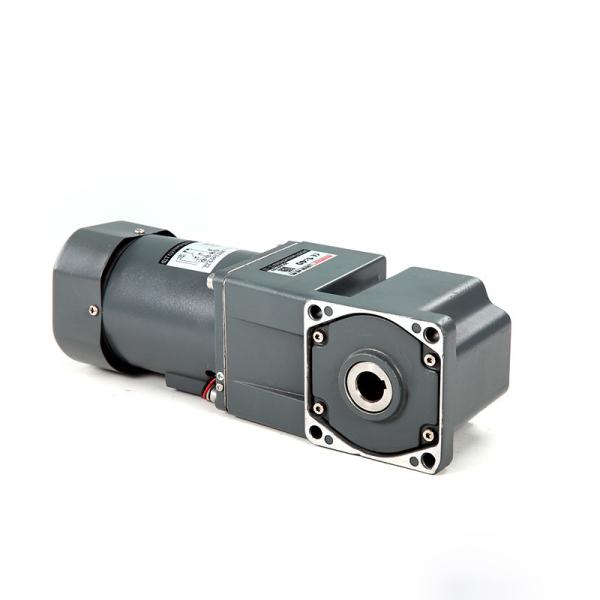

Gear Size 60 220V Compact Geared Motor Conveyor Belt Gear Motor

    Buy cheap Gear Size 60 220V Compact Geared Motor Conveyor Belt Gear Motor from wholesalers

    Buy cheap Gear Size 60 220V Compact Geared Motor Conveyor Belt Gear Motor from wholesalers
    • Buy cheap Gear Size 60 220V Compact Geared Motor Conveyor Belt Gear Motor from wholesalers

    Gear Size 60 220V Compact Geared Motor Conveyor Belt Gear Motor

    Ask Lasest Price
    Brand Name : Wanshsin
    Model Number : 90YS60WGV22+90GF100H
    Certification : ISO9001, CCC, CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20,000 Pieces per Month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Gear Size 60 220V Compact Geared Motor Conveyor Belt Gear Motor

    Small Geared Motor Output Torque 0.11-44Nm Gear Size: 60/70/80/90/100 for Conveyor Belts


    Product Features

    1 High stability:Load power is sufficient, stable operation, and low fatigue after long term use.

    2 Various function to motor.
    3 Multiple voltage.
    4 Wide power range.


    MICRO AC MOTOR6W15W25W40W/60W90W/120W140W/160W180W/200W250W
    Reduction Ratio3~2003~2003~2003~2003~2003~2003~2003~200
    50HZ Rated torque0.13~3N.M0.30~5N.M0.50~8N.M0.77~10N.M(40W) 1.19~20N.M(60W)1.79~20N.M(90W) 2.25~20N.M(120W)2.62~44N.M(140W) 2.76~44N.M(160W)

    3.1~44N.M(180W)

    3.44~44N.M(200W)

    4.26~44N.M
    60HZ Rated Torque0.11~3N.M0.25~5N.M0.41~8N.M0.64~10N.M(40W) 0.99~20N.M(60W)1.49~20N.M(90W) 1.87~20N.M(120W)2.19~44n.m(140W) 2.48~44N.M(160W)

    2.76~44N.M(180W)

    2.87~44N.M(200W)

    3.83~44N.M
    MICRO DC MOTOR60DC70DC80DC90DC100DC
    Reduction Ratio3~2003~2003~2003~2003~200
    Output Bearing speed533~8533~8533~8533~8600~9
    Rated torque0.129~3n.m0.26~5n.m0.386~8n.m0.52~20n.m

    2.578~44n.m


    Gear Size 60 220V Compact Geared Motor Conveyor Belt Gear Motor


    FAQ


    Q: What should I provide when I choose gearbox/speed reducer?
    A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
    1) Type, model and torque.
    2) Ratio or output speed
    3) Working condition and connection method
    4) Quality and installed machine name
    5) Input mode and input speed
    6) Motor brand model or flange and motor shaft size


    Q: Are you a motor manufacturer?
    A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.


    Q: How long does it take to finish my order?
    A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.


    Q: Can I get a sample first?
    A: Sure, we are honored to offer you sample for test before placing a formal order.
