    High Precision P0 Planetary Gearbox Reducer

    Ask Lasest Price
    Brand Name : Wanshsin
    Model Number : WAD090010P1
    Certification : ISO9001, CCC, CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10,000 Pieces per Month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

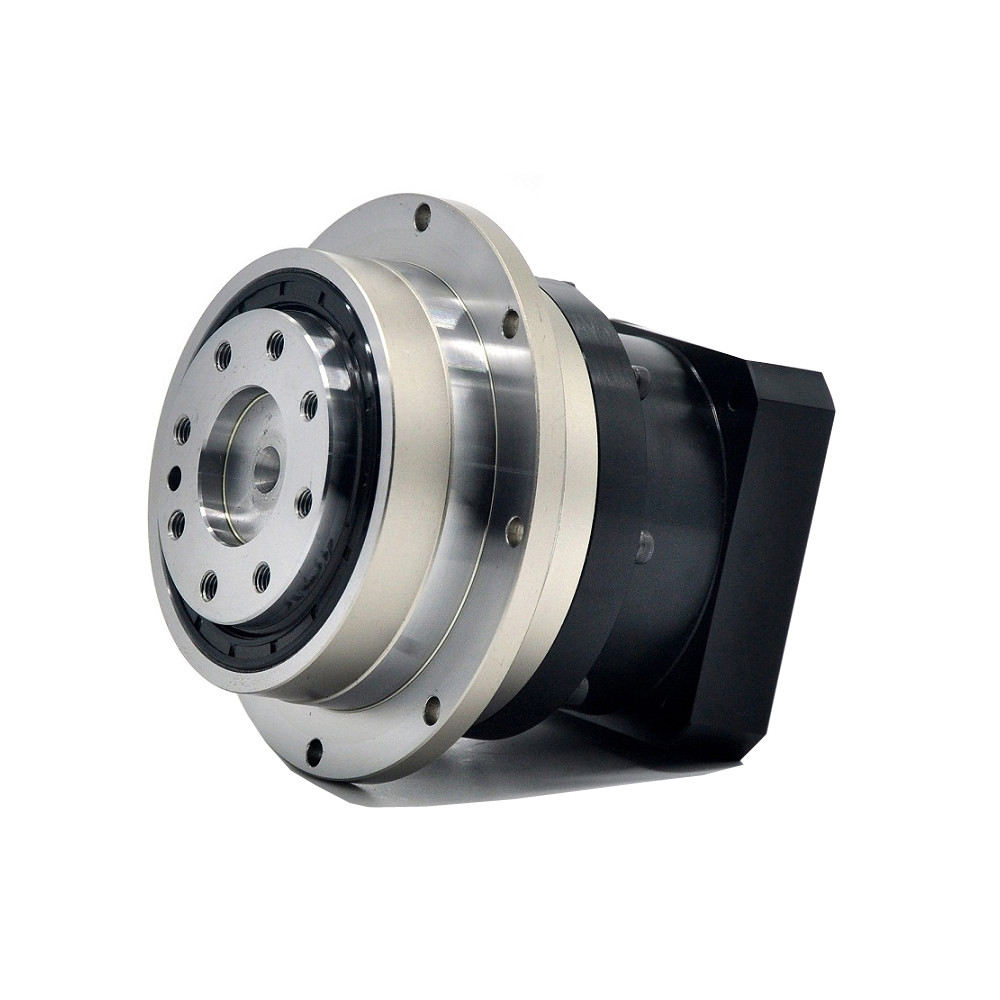

    High Precision P0 Planetary Gearbox Reducer

    WAD Series Planetary Gearbox


    PRODUCT FEATURESS

    1. Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity.
    2. Planetary wheel with full needle design, increase the contact area to improve the rigidity and output torque.
    3. The gears are carburized and quenched to the HRC62 with low carbon steel surface for optimum wear and impact toughness.
    4. Gears refer to foreign imported software-assisted design to obtain the best tooth shape to reduce noise.
    5. The input terminal is connected to the motor shaft in double-tight manner to obtain the maximum clamping force and zero backlash power transmission.

    Design
    The selection of an appropriate planetary gearbox for your individual application. Contact us at any time.


    Short delivery time
    Small quantities available on short notice. Delivery time for larger quantities or special requests has to be checked individually.


    CAD drawings
    Drawings for all series are available on request.


    Flexibility
    For customized solutions we draw from a large range of single components. Depending on demand they may be combined for you in a flexible way.


    SizeWABWADWVRBWAEWPFWPLWR
    Ratio3~2003~2003~2003~2003~2003~2001, 2, 3, 5
    Maximum input speed10000RPM10000RPM10000RPM10000RPM10000RPM10000RPM2000RPM
    Output torque14~2000Nm14~2000Nm14~2000Nm14~2000Nm12~550Nm12~550Nm15~60Nm
    Precision backlashP1/P2/P3P0/P1/P2P1/P2/P3P1/P2/P3P1/P2/P3P1/P2/P3P1/P2/P3
