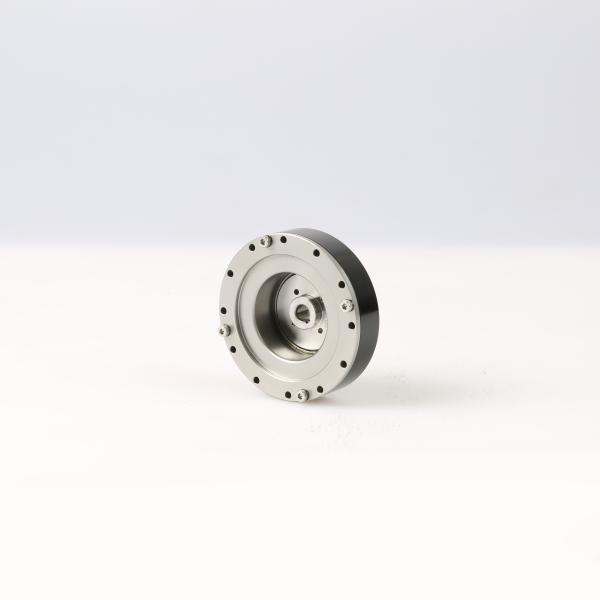

Harmonic Driver Reducer Reduction Ratio 1:50,80,100,120 Output
Speed 30-200rpm for Waterjet Cutter
PRODUCT FEATURESS
1. High transmission accuracy.
2. Smooth movement, no impact, low noise.
3. Tooth side clearance can be adjusted.
4. Simple structure, small size and light weight.
5. Large transmission ratio range.
6. There are many pairs of teeth meshing at the same time.
7. High transmission efficiency.
8. Good coaxiality.
9. Conveniently realize differential transmission.
Principle of harmonic gear reducer
As a reducer, the harmonic gear reducer is often in a status as:the
wave generator drives, the circular spline is fixed, the flexspline
s output end
When the wave generator is put inside of the flexspline, the
flexspline is forced into an elliptical shape causing the
flexspline teeth to engage with the tooth profile of the circular
spline along the major axis of the ellipse, with the teeth
completely disengaged across the minor axis of the ellipse
The rotation of the wave generator makes the flexspline deform
continuously, the teeth change operating state in the process of
engagement and disengagement, thus the motion transmission between
wave generator and flexspline is realized.
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping | Maximum Allowed Average Load Torque | Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec | Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
